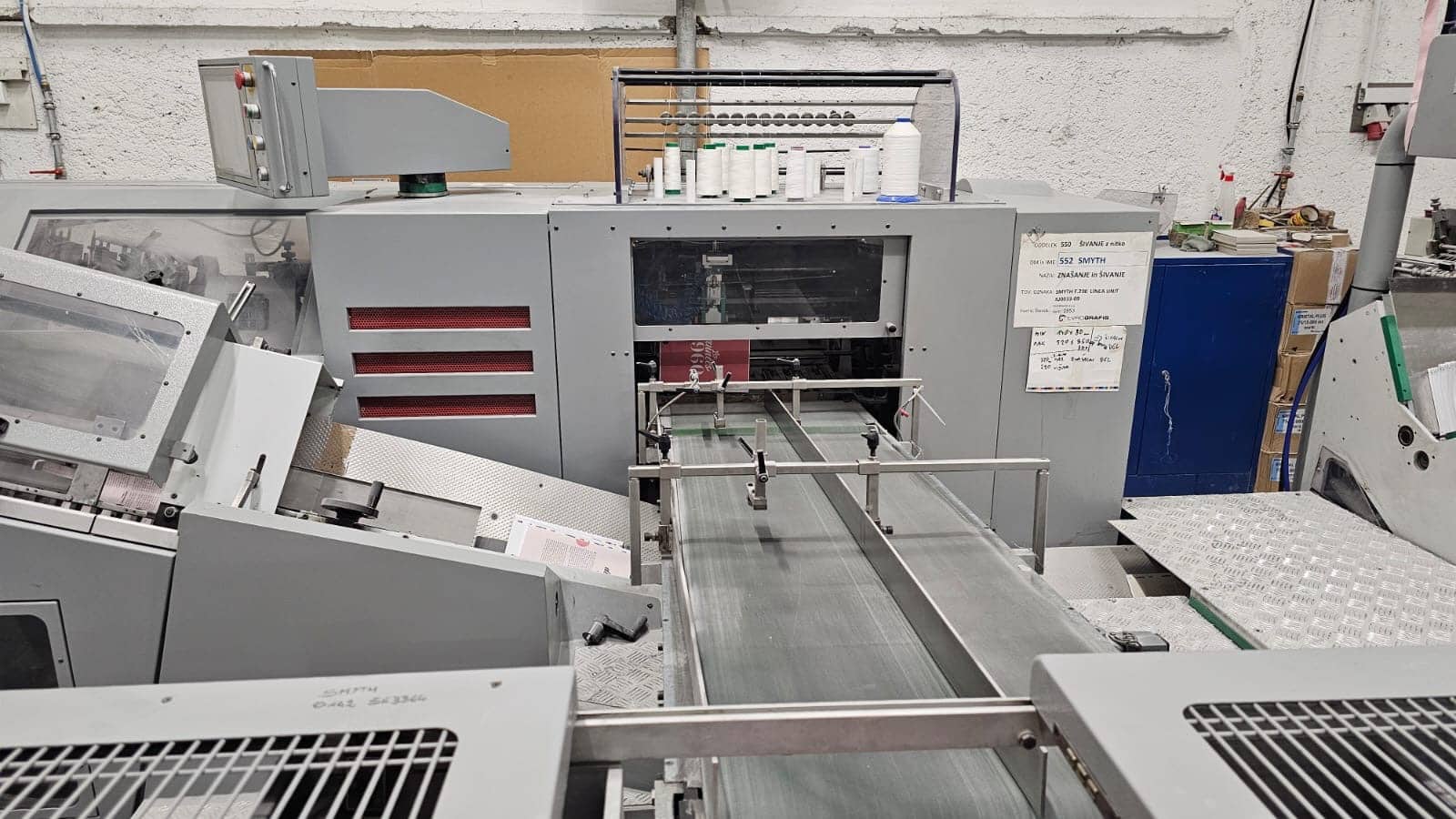

Complete gathering & sewing system with minimum staffing levels, High speed 200 cycles/min. automatic book sewer with gatherer, Comprising; Gatherer P12 – 24 stations – can also be used as 12 feeders for wider format work, Automatic hoppers with vibrator & jogging adjustment, Sequential start control of each section for quick set-up, Hopper feed with suction & gripper action, Automatic interface with F200 book sewer, Automatic loading of book blocks into sewer, Smyth F200 Automatic book sewer with;
Computer programme – with alpha-numeric display and memory capability, moveable Touch Screen monitor for programming & diagnostics, auto set-up with servo motors, 4 plus 4 upper and lower openings – programmable, suction and gripper action, programming of lap opening & suckers, D/C drive unit, Capable of mixed suction & lap signature feeding, Standard or staggered stitching – adjustable, Thread cutting device, Delivery conveyor to; ‘Stacker’ compensating stacker, Specification: Section sizes, Max: 520 x 350 mm, Min: 80 x 140 mm, Stitch length : 18 mm, Number of stitches : 14, Mechanical speed : up to 200 cycles/min
